OneLANHub交换机用户手册
产品简介
OneLANHub 微型百兆交换机，专为无人机、机器狗、无人船等移动平台打造。轻松连接吊舱、机载计算机、传感器等多设备，在极致轻巧的机身中实现稳定可靠的网络互联。
产品参数
| 项目 | 参数 |
|---|---|
| 网口数量 | 5 |
| 网口速率 | 最大100Mbps（共享） |
| 组内线序交叉检测 | 是 |
| 网口接口 | GH1.25 |
| 供电范围 | 12-36V |
| 供电接头 | XT30 |
| 功耗 | ？？ |
| 工作温度 | -20℃~-85℃ |
| 重量 | 30g |
| 尺寸 | 57.2mm×32.2mm×13.5mm |

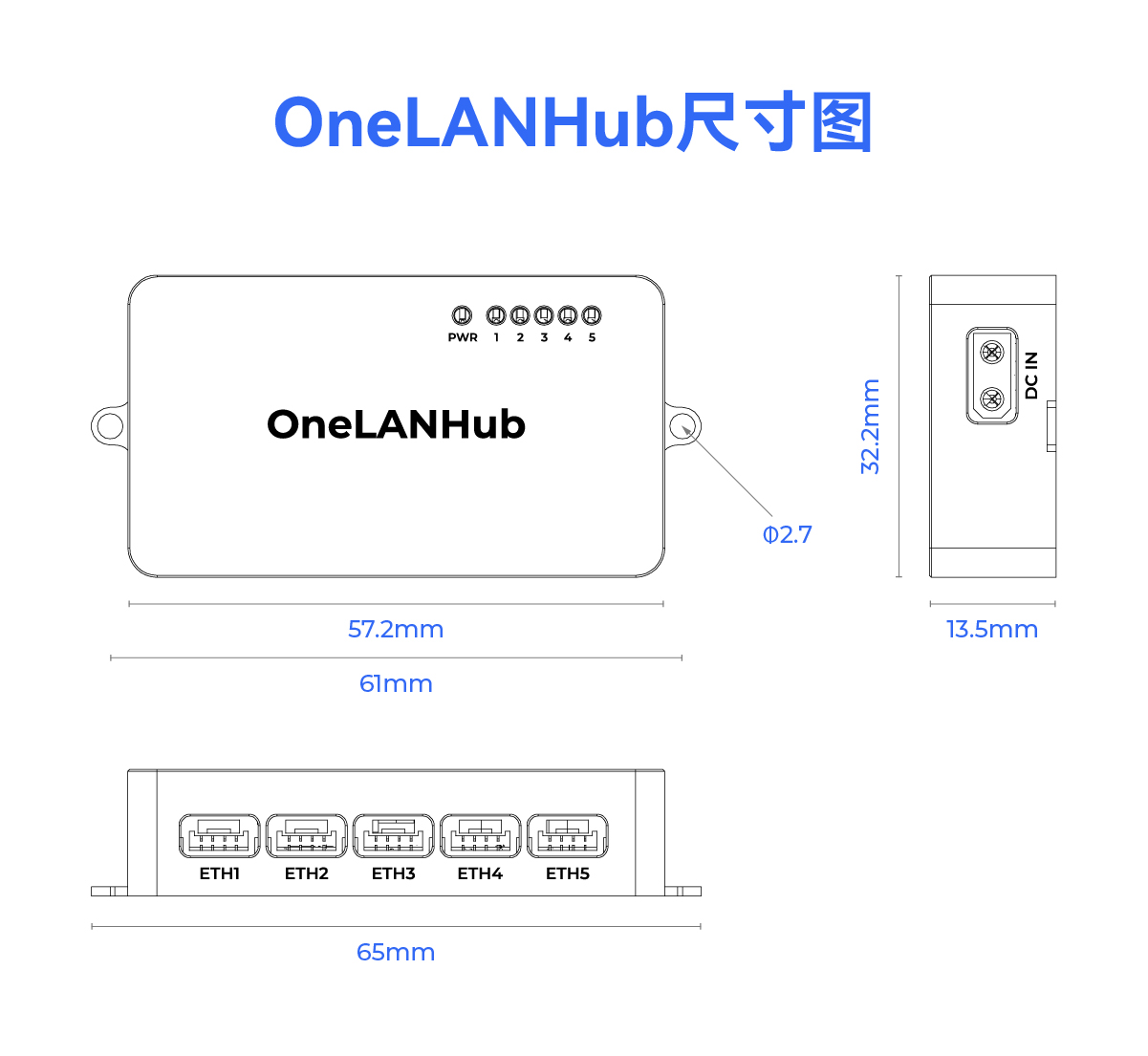

尺寸图

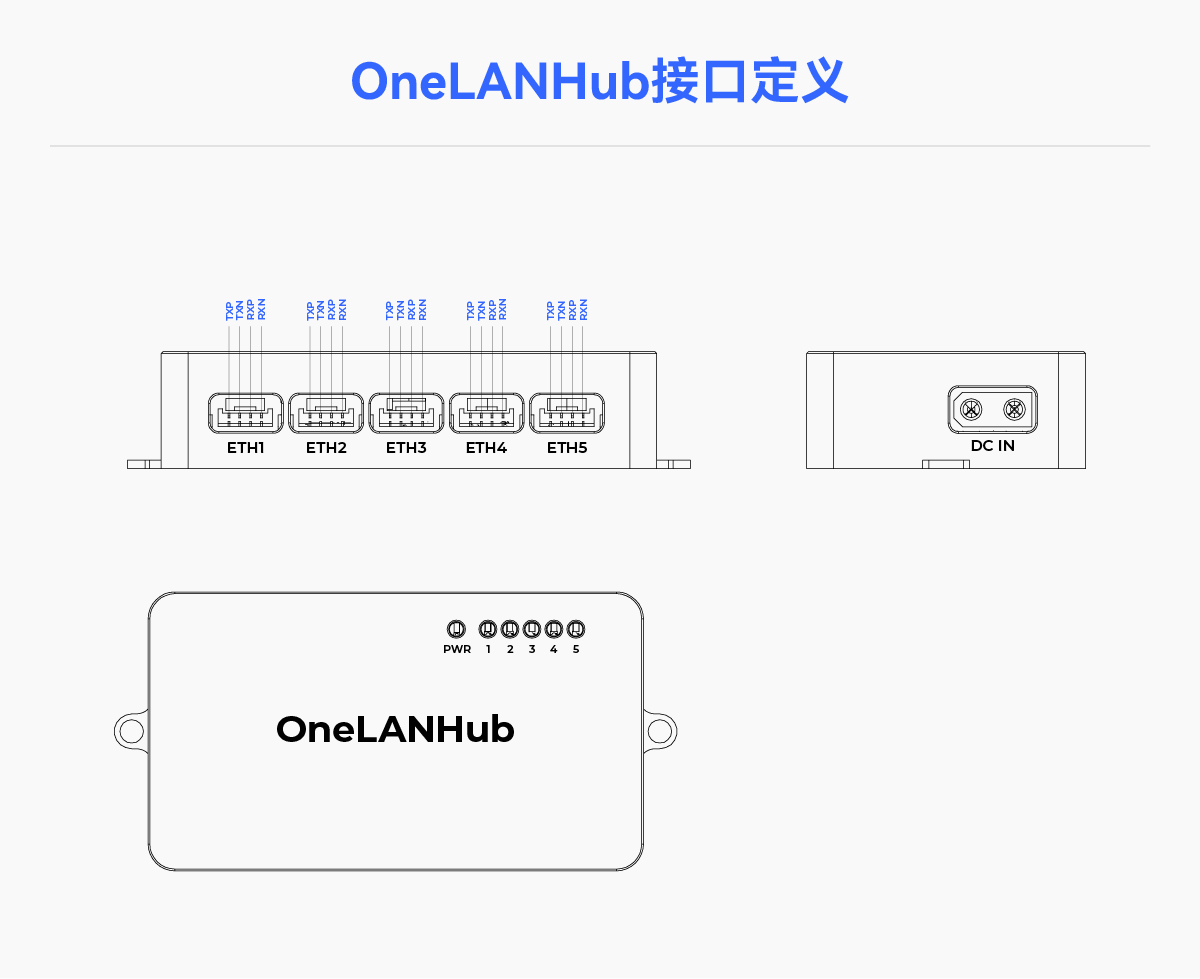

接口定义
