OneTube加热空速管产品介绍
产品介绍
OneTube加热空速管，专为无人机在极寒条件下飞行设计，带有自加热功能，最大65w的加热功率，配备排水孔，有效防止毛冰、透明冰、混合冰、等积冰的形成，使其能够在寒冷的条件下进行飞行。
规格参数表
| 项目 | 参数 |
|---|---|
| 加热空速管 | |
| 最大测量速度 | 0.8马赫（约980km/h） |
| 最大加热功率 | 65W |
| 尺寸 | 208.6mm×19mm×19mm |
| 重量 | 61g |
| 工作温度 | -50℃-120℃ |
| 加热控制器 | |
| 电压输入 | 26V±10V |
| 工作温度 | -40℃-120℃ |
| 尺寸 | 44.5mm×27mm×14.2mm |
| 重量 | 26.4g |

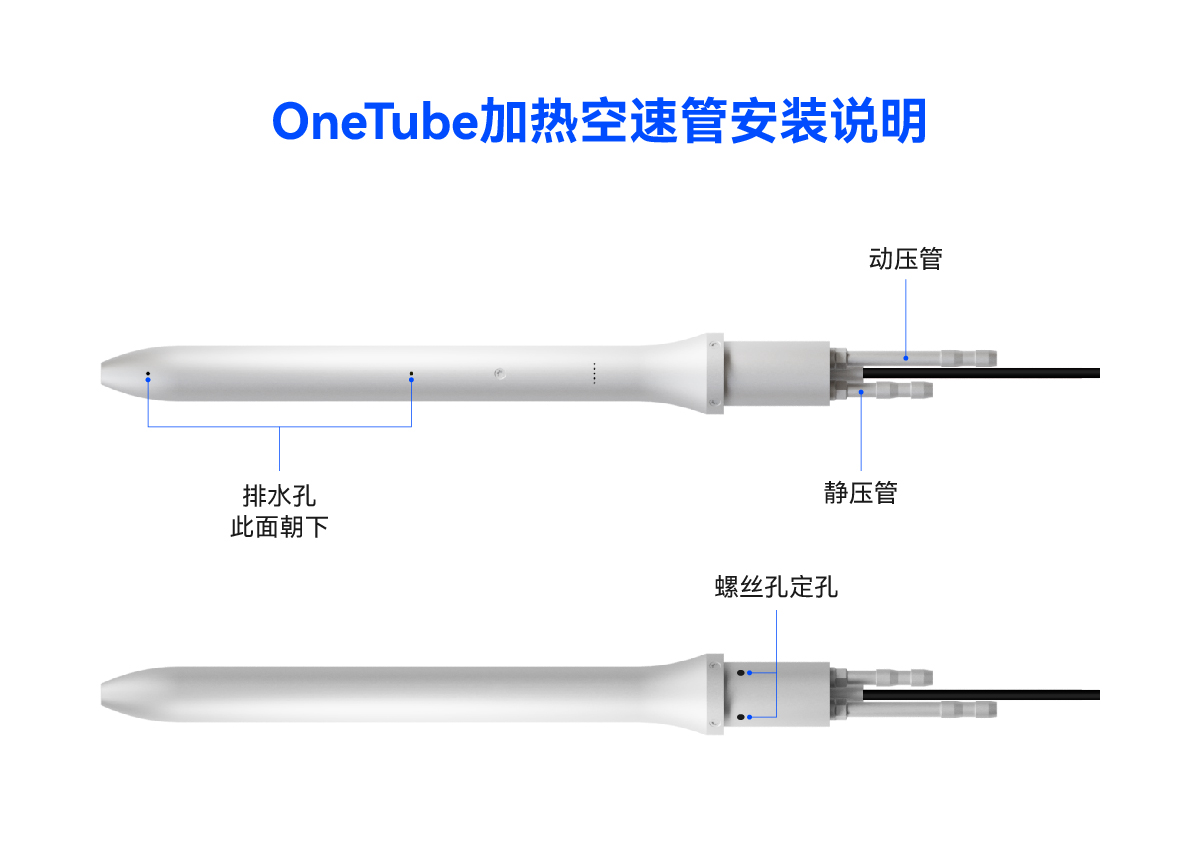

接口定义
空速管：长头为动压， 短头接静压
灯语
| OneTube控制器 | |
|---|---|
| PWR电源灯 | 亮起表示电源已接通，熄灭表示无电源或损坏 |
| TEPM指示灯 | 温度越高，亮度越高 |
