连接第三方地面站
确认飞控telem波特率（默认115200）

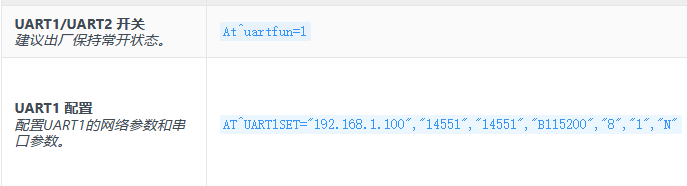

在主节点上输入AT指令
设置地面站IP

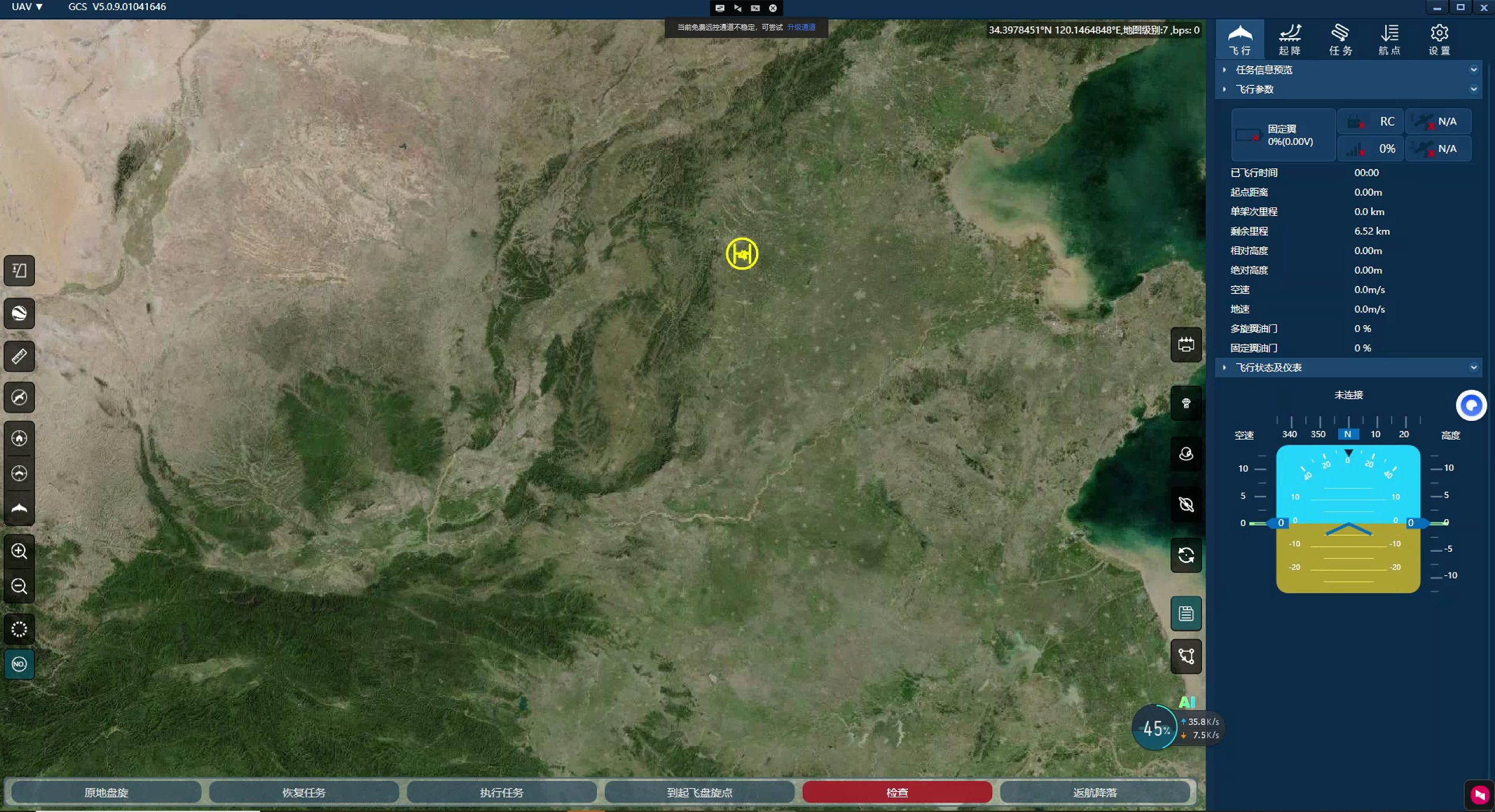

打开地面站软件
点击【链接飞机】

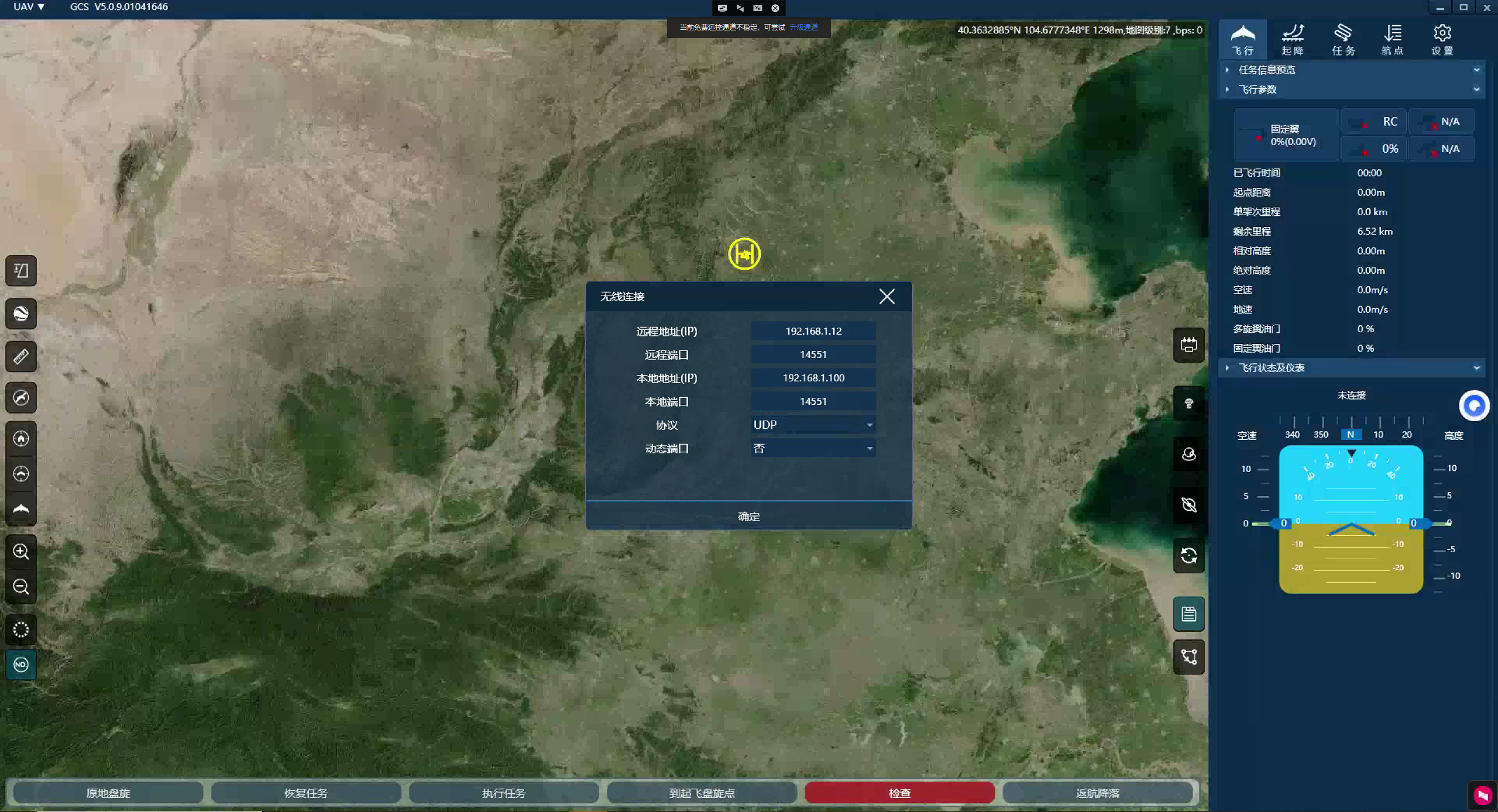

点击【无线链接】
选择【UDP】
远程地址输入天空端的IP地址192.168.1.100（默认为192.168.1.12）端口号输入14551
点击【确定】

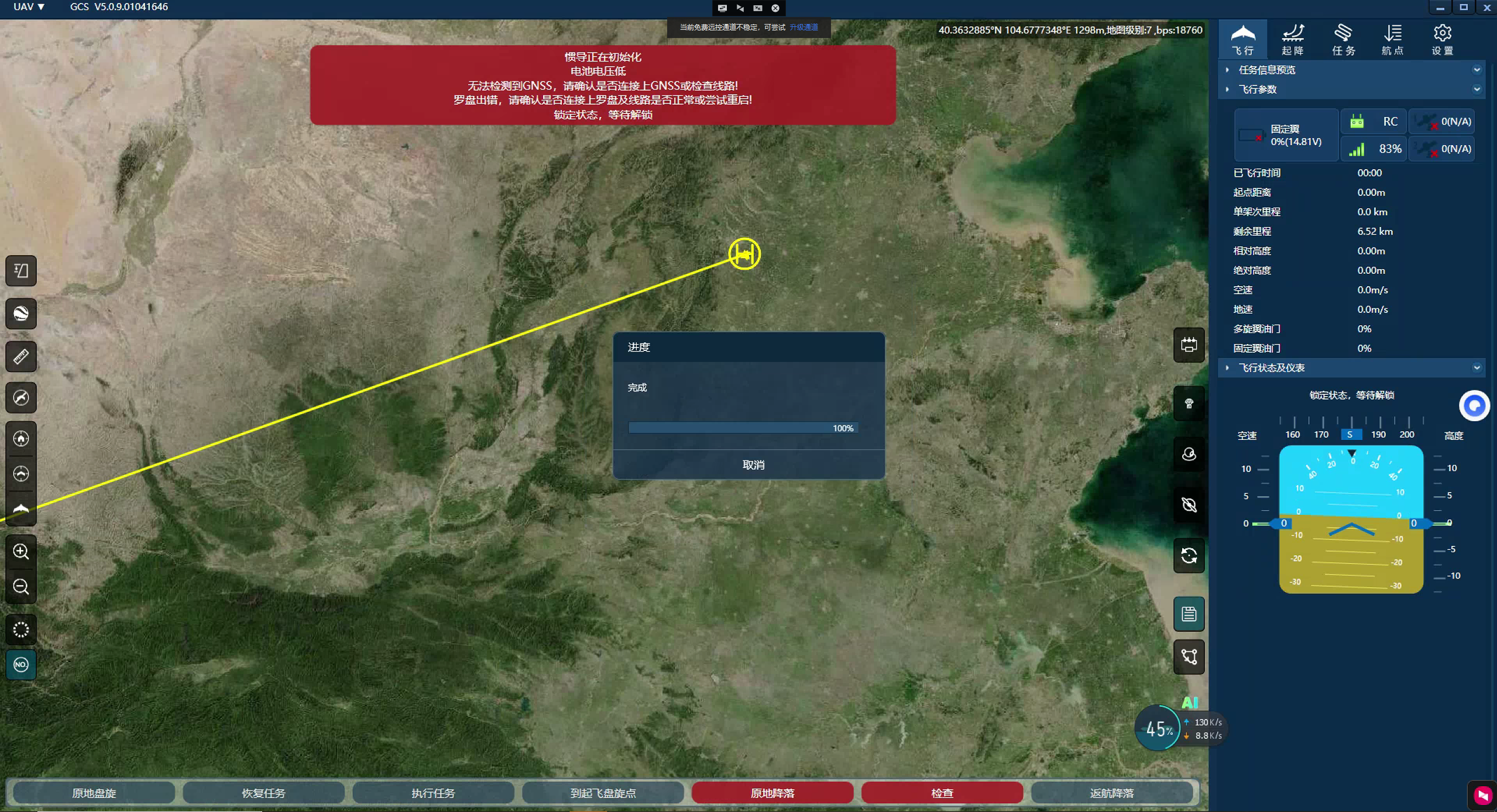

完成链接
