OneUBEC舵机供电模块用户手册
产品介绍
- 支持3-18S宽域电压输入
- 5.2~8.4V四档可调输出电压
- 支持XT30、杜邦接口，适用范围广
- 过流保护、短路保护、欠压保护、过热保护、备用电源、主动散热
- 20A持续供电电流，瞬时36A
- 电源转换效率高达90%
- 电源波纹低至30mV
规格参数表
| 项目 | 参数 |
|---|---|
| 输入电压 | 主电源：3-18S 备份电源：1-2S |
| 输出电压 | 5.2V、6.0V、7.4V、8.4V四档可调 |
| 输出电流 | 20A持续电流、最大36A瞬时电流 |
| 保护功能 | 过流保护、短路保护、欠压保护、过热保护、备用电源保护 |
| 转换效率 | 最大90% |
| 主动散热 | 是 |
| 电源纹波 | 30mV~70mV |
| 接口明细 | XT30输出接口×2、杜邦接口输入×4、杜邦输出接口×4、主电源输入、备份电源输入 |
| 尺寸 | 68.6mm×41.2mm×23mm |
| 重量 | 116g |

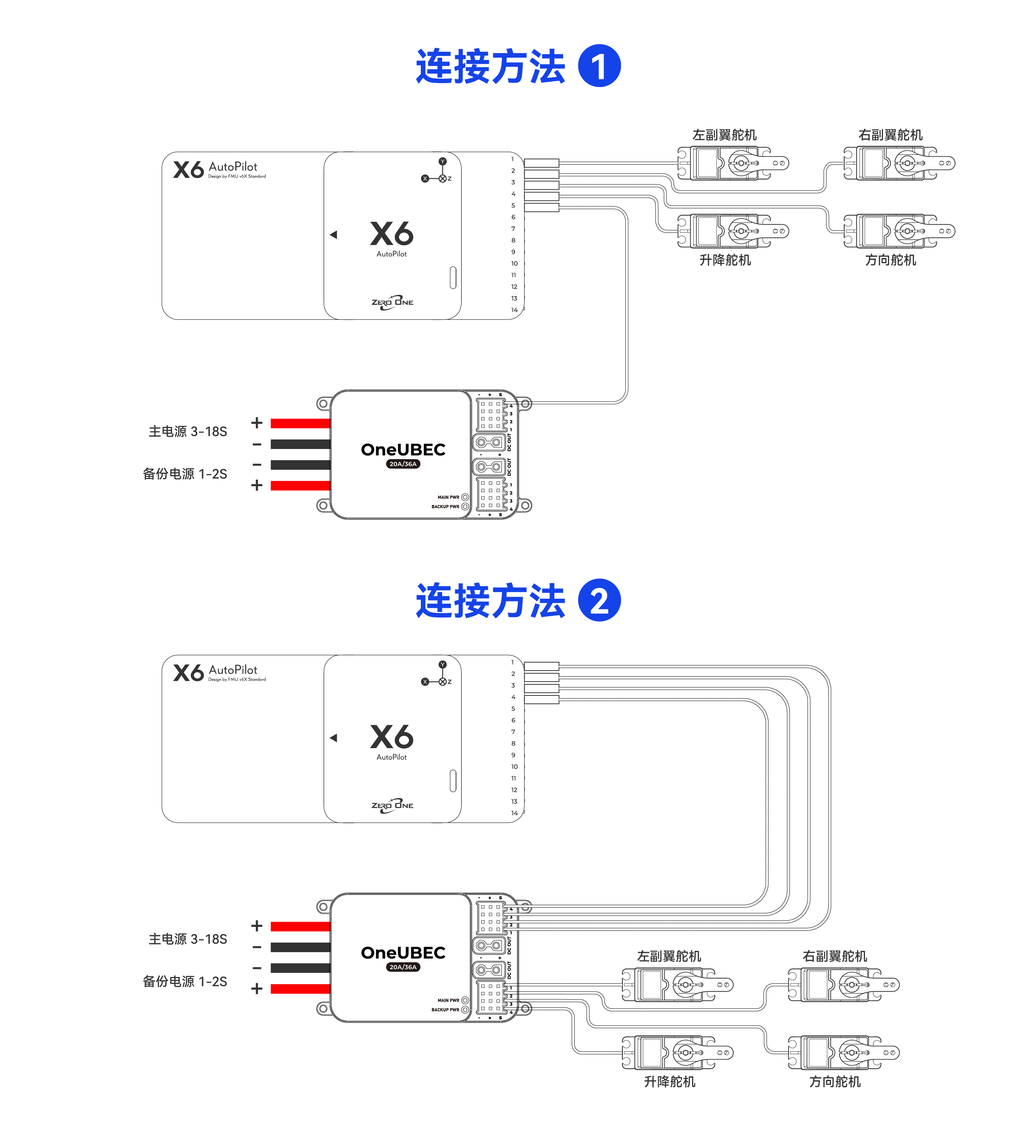

接口定义
