常见问题

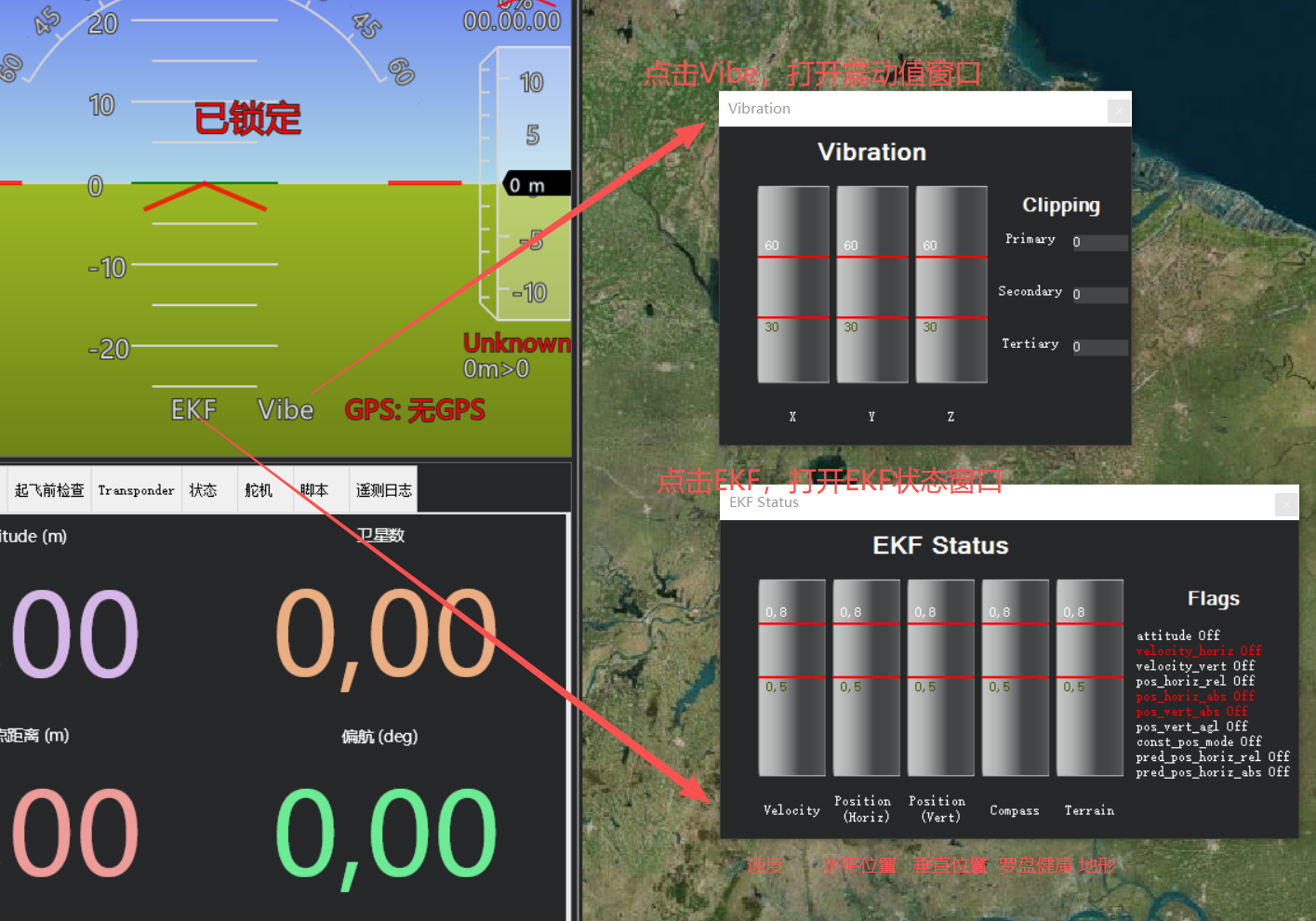

在哪里查看飞机的震动值和罗盘健康？
请打开MissionPlanner，点击左上角仪表盘中的Vibe和EKF打开窗口。

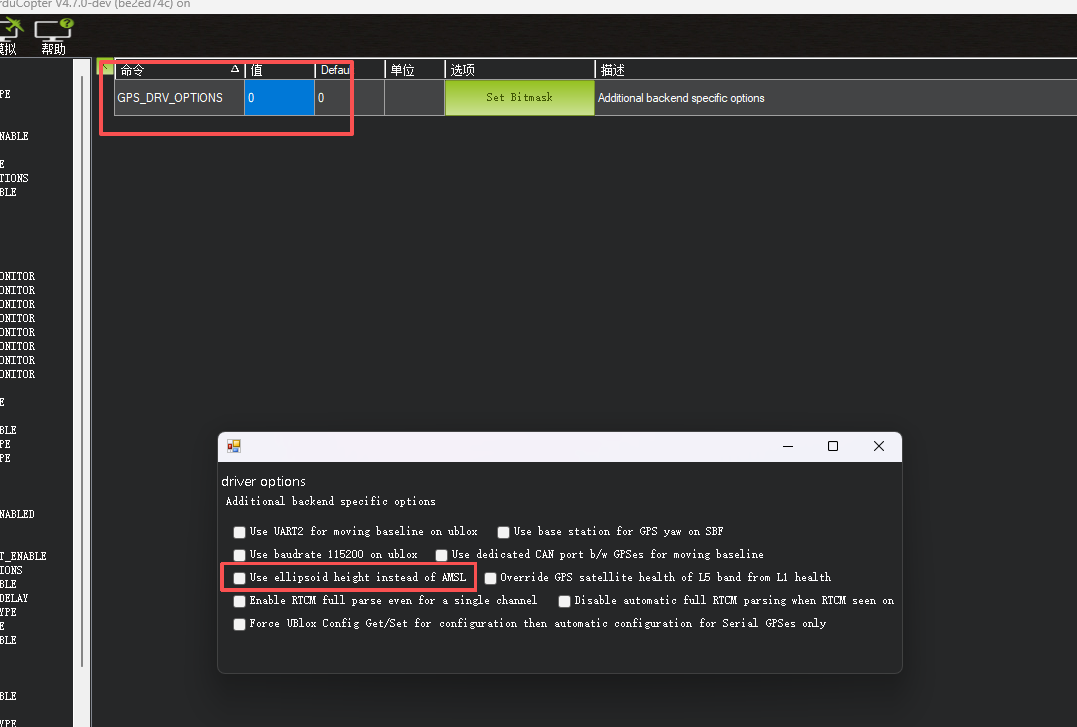

GPS是否可以不用大地高度，使用椭球高度？
可以，全部参数表查找GPS_DRV_OPTIONS，点击Set Bitmask,勾选如下图参数后，写入参数并重启飞控。
分享文章
上一个
象限发动机使用教程
下一个
PX4固件教程
