固件检查及升级
检查固件及升级
确认模块固件版本
-

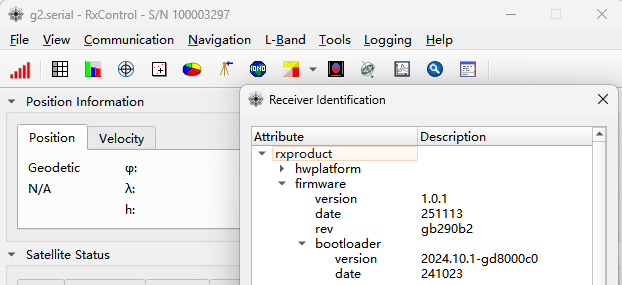

通过RxControl软件 Help/Receiver Identification 查看固件版本
-
当前模块最新固件版本是1.0.1，以下是最新固件
下载链接
固件升级
如上一步骤发现固件不是最新版本，通过如下步骤进行固件升级

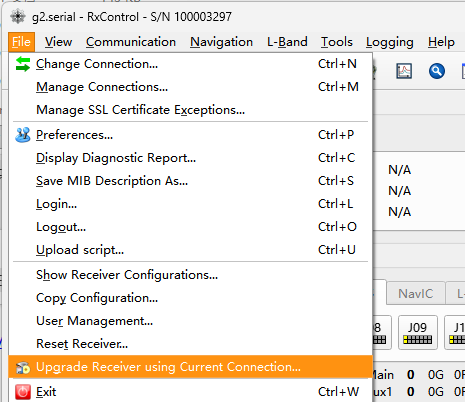

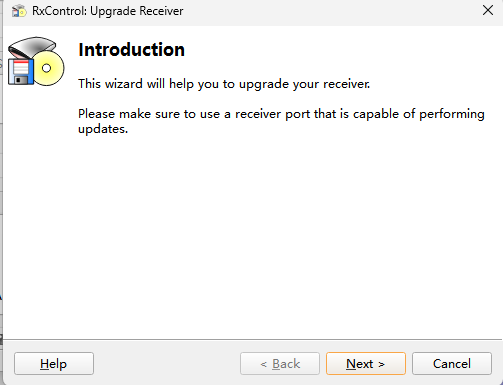

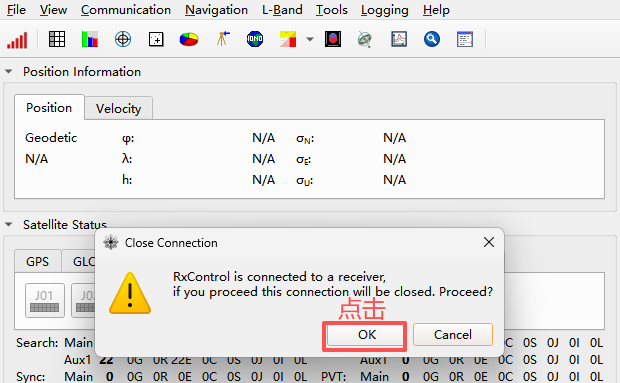

- RxControl 软件 File/Upgrade Receiver using Current Connection…

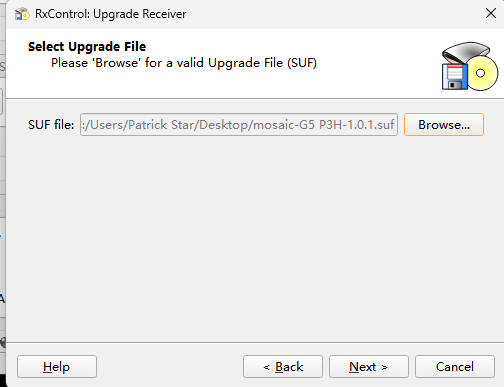

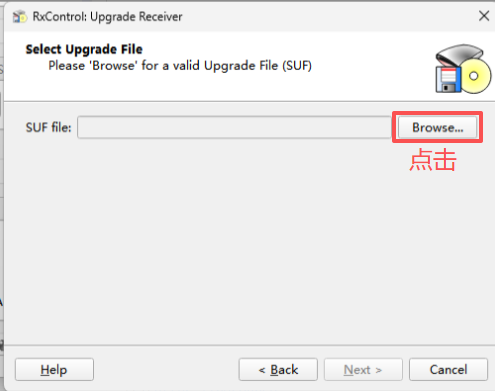

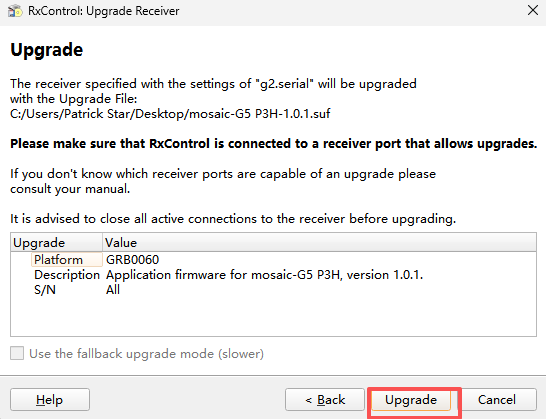

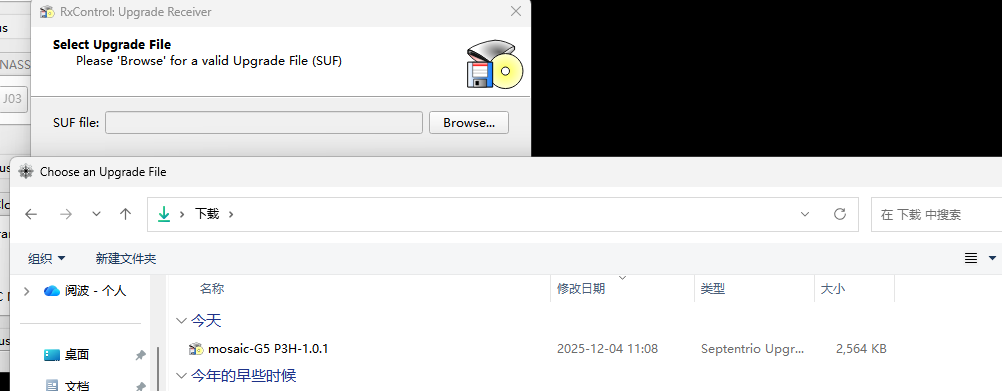

- 选择下载好的SUF文件，点upgrade，等待更新进度条100%完成即可。

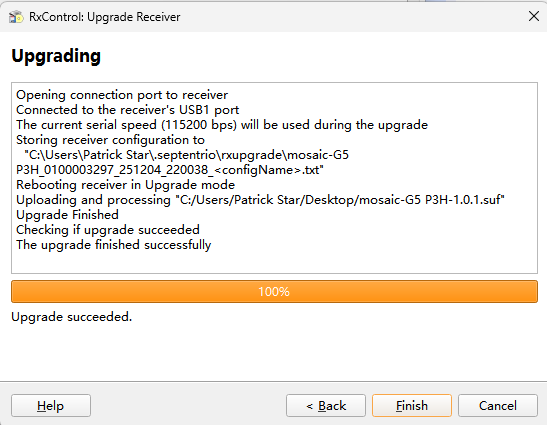

- 更新完成后模块会自动重启，重新连接RXControl，再次检查确认固件版本，以下是完成的升级界面
